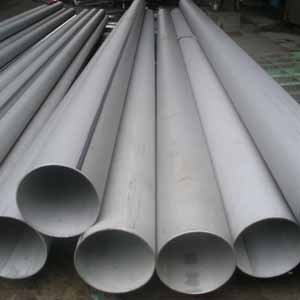

316 / 316L STAINLESS STEEL PIPE
ASTM A312 / A213 / A249 TP 316 Stainless Steel Pipes & Tubes
Stainless Steel 316 werkstoff nr. 1.4401 / 1.4436 Pipes & Tubes Manufacturer, Exporter & Suppliers.
Stainless Steel UNS S31600 Seamless & Welded Pipes & tubes Suppliers in India.
These grades of austenitic stainless steels are similar to 304 and 304L, but with the addition of molybdenum. The addition of molybdenum improves the alloys corrosion resistance, particularly with higher resistance to pitting and crevice corrosion in chloride environments. The austenitic structure allows excellent toughness, even down to cryogenic temperatures. These grades have excellent weld-ability, with or without the addition of filler metal.
We New Arise Metal are one of the leading Stockiest, exporter & suppliers of premium quality ASTM A312 TP 316 Stainless Steel Pipes & tubes. SS 316 Pipes & Tubes are manufactured using quality stainless steel in different wall thickness and diameters. These pipes & tubes are available in various sizes, shapes as per the requirements of our clients. These pipes & Tubes are offered at very reasonable rates to our clients.
Specification : | ||
| Specifications | : | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
| Dimensions | : | ASTM, ASME and API |
| 316 Pipes & Tubes | : | 1/2" NB - 24" NB |
| ERW 316 Pipes & Tubes | : | 1/2" NB - 24" NB |
| EFW 316 Pipes & Tubes | : | 6" NB - 100" NB |
| Tubing Size | : | 1/8″NB TO 30″NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | - | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)
Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | min. | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| max. | 0.08 | 2.00 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
Mechanical properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40% | 95 | 217 |
Physical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316 | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Grade specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
Types Of Stainless Steel 316 Pipes & Tubes :
• ASTM A213 TP 316 Stainless Steel Seamless Tubes
• ASTM A312 TP 316 Stainless Steel Welded Pipes
• ASTM A249 TP 316 Stainless Steel Welded Tubes
• SS 316 Seamless Pipes
• SS 316 ERW Pipes
• SS 316 EFW Pipes
• SS 316 Rectangular Pipes
• SS 316 Seamless Tubes
• SS 316 ERW Tubes
• SS 316 EFW Tubes
• SS 316 Welded Tubes
• SS 316 Rectangular Tubes
