Stainless Steel 316L werkstoff nr. 1.4404 / 1.4435 Pipes & Tubes Stockiest, Suppliers & Exporter.
Stainless Steel UNS S31603 Seamless & Welded Pipes & tubes Suppliers in Mumbai India.

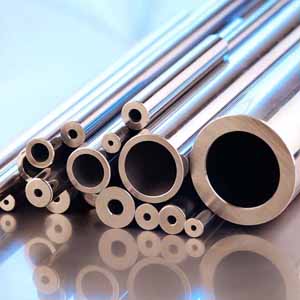

ASTM A312 / A213 / A249 TP 316L Stainless Steel Pipes & Tubes
New Arise Metal are one of the leading Stockiest, exporter, manufacturer & suppliers of premium quality ASTM A312 TP 316L Stainless Steel Pipes & tubes. We manufacture in both seamless as well as welded construction. SS 316L Pipes & Tubes are manufactured using quality stainless steel in different wall thickness and diameters. These pipes & tubes are available in various sizes, shapes as per the requirements of our clients. These pipes & Tubes are offered at very reasonable rates to our clients.
Specification : | ||
| Specifications | : | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
| Dimensions | : | ASTM, ASME and API |
| 316L Pipes & Tubes | : | 1/2" NB - 24" NB |
| ERW 316L Pipes & Tubes | : | 1/2" NB - 24" NB |
| EFW 316L Pipes & Tubes | : | 6" NB - 100" NB |
| Tubing Size | : | 1/8″NB TO 30″NB IN |
| Specialized in | : | Large Diameter Size |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)
Chemical Composition :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L | min. | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| max. | 0.08 | 2.00 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
Mechanical properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 170 | 40% | 95 | 217 |
Physical properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Grade specifications
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316L | S31603 | S31603 | - | 1.4404 | X5CrNiMo17-12-2 | 2348 | SUS 316L |
Types Of Stainless Steel 316L Pipes & Tubes :
• ASTM A213 TP 316L Stainless Steel Seamless Tubes
• ASTM A312 TP 316L Stainless Steel Welded Pipes
• ASTM A249 TP 316L Stainless Steel Welded Tubes
• SS 316L Seamless Pipes
• SS 316L ERW Pipes
• SS 316L EFW Pipes
• SS 316L Rectangular Pipes
• SS 316L Seamless Tubes
• SS 316L ERW Tubes
• SS 316L EFW Tubes
• SS 316L Welded Tubes
• SS 316L Rectangular Tubes
